Rebar Detailing
At ZED REBARS, we specialize in providing comprehensive and code-compliant rebar detailing services that ensure constructability, accuracy, and efficiency from design through construction. Our detailing team converts complex structural drawings into practical, fabrication-ready shop drawings and placement plans, helping project stakeholders avoid costly errors and delays.
Scope of Service:

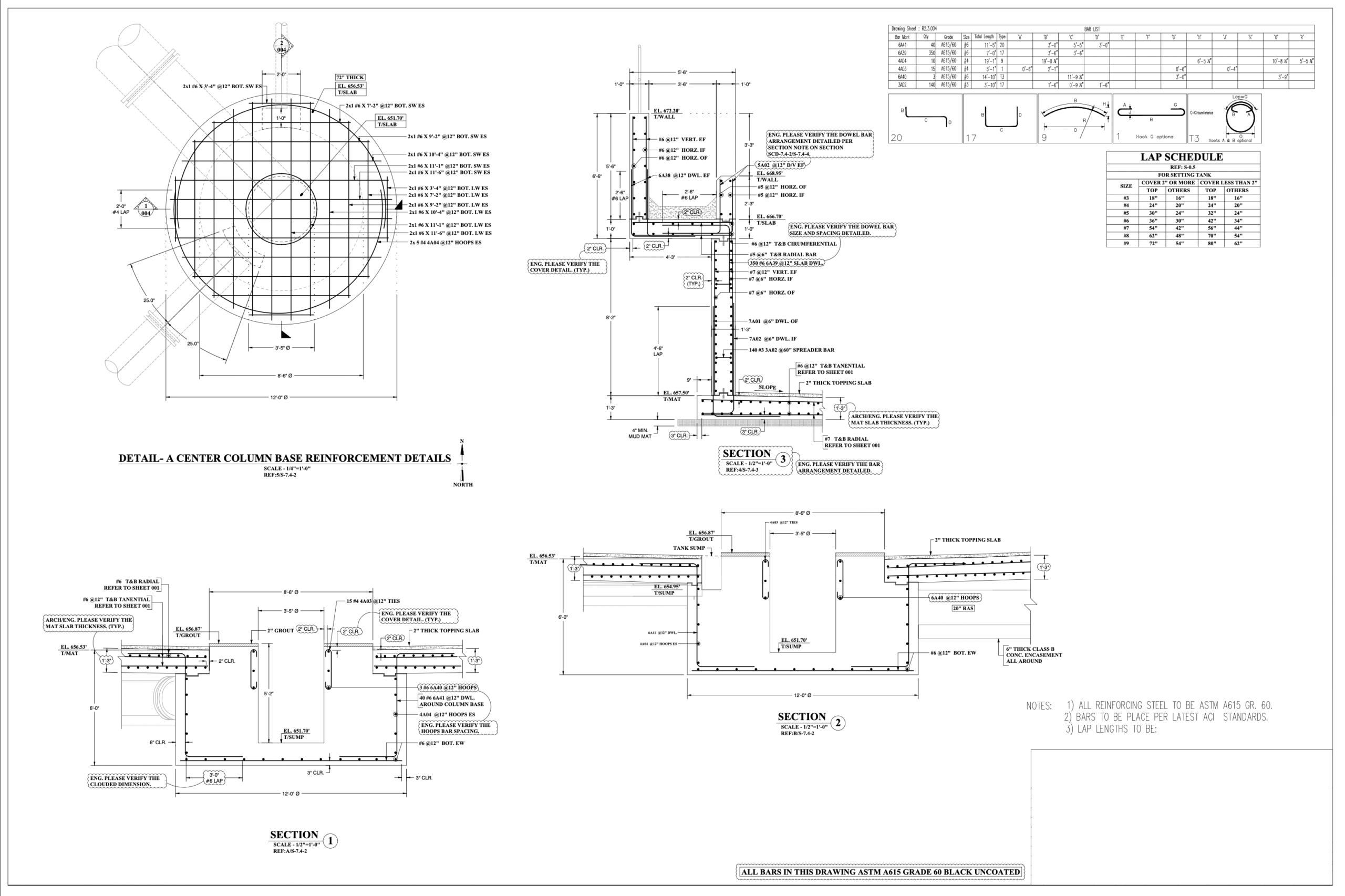

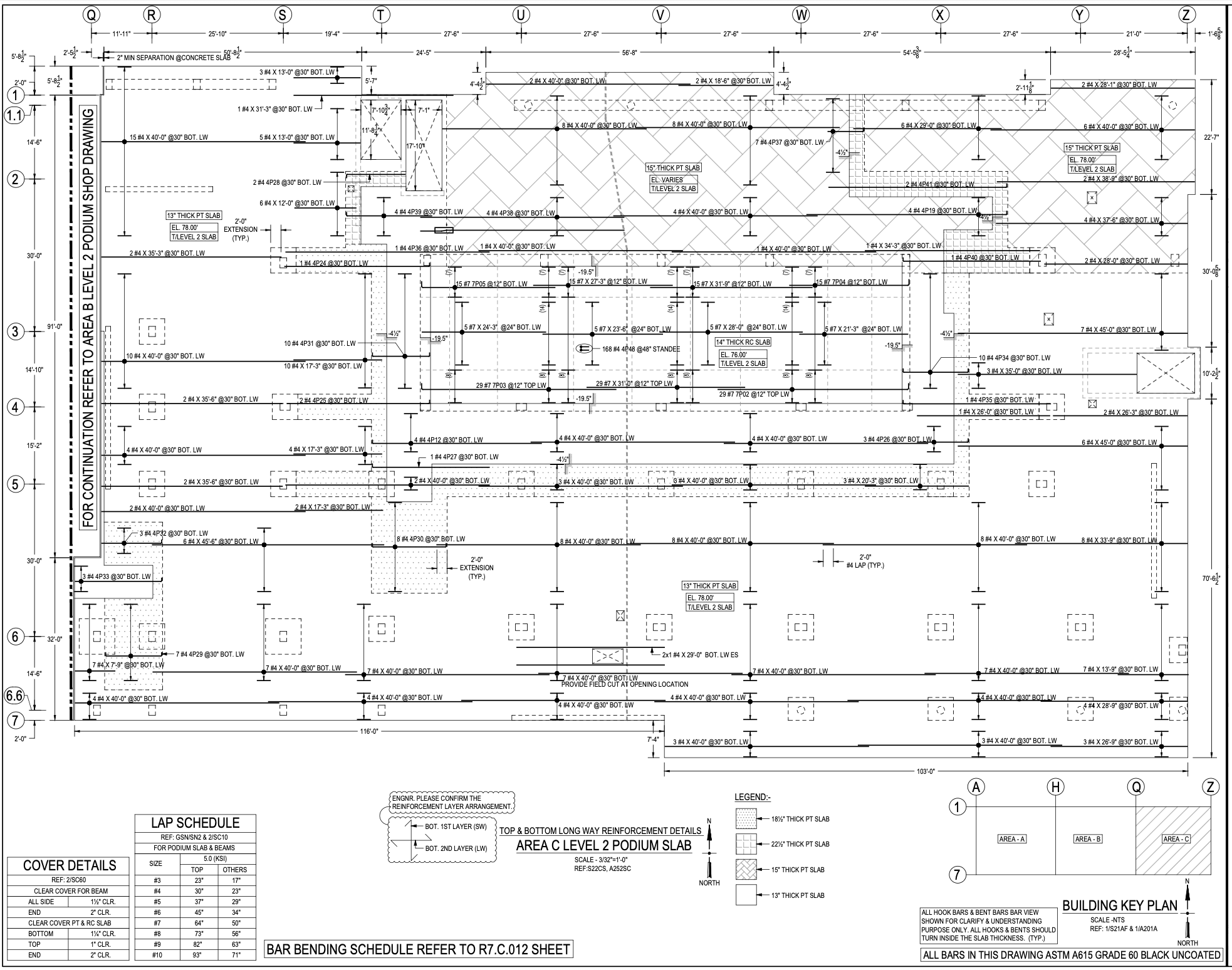

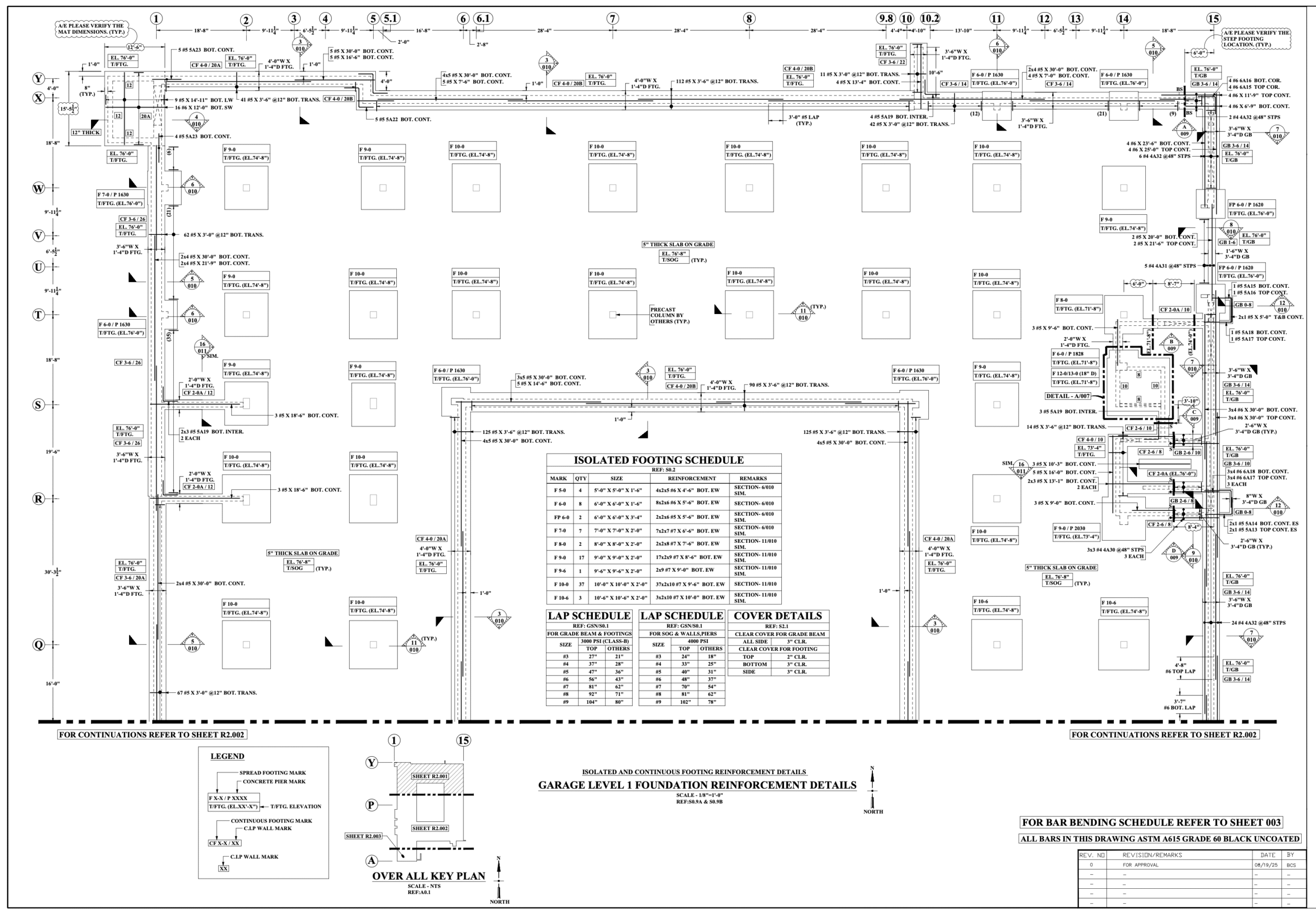

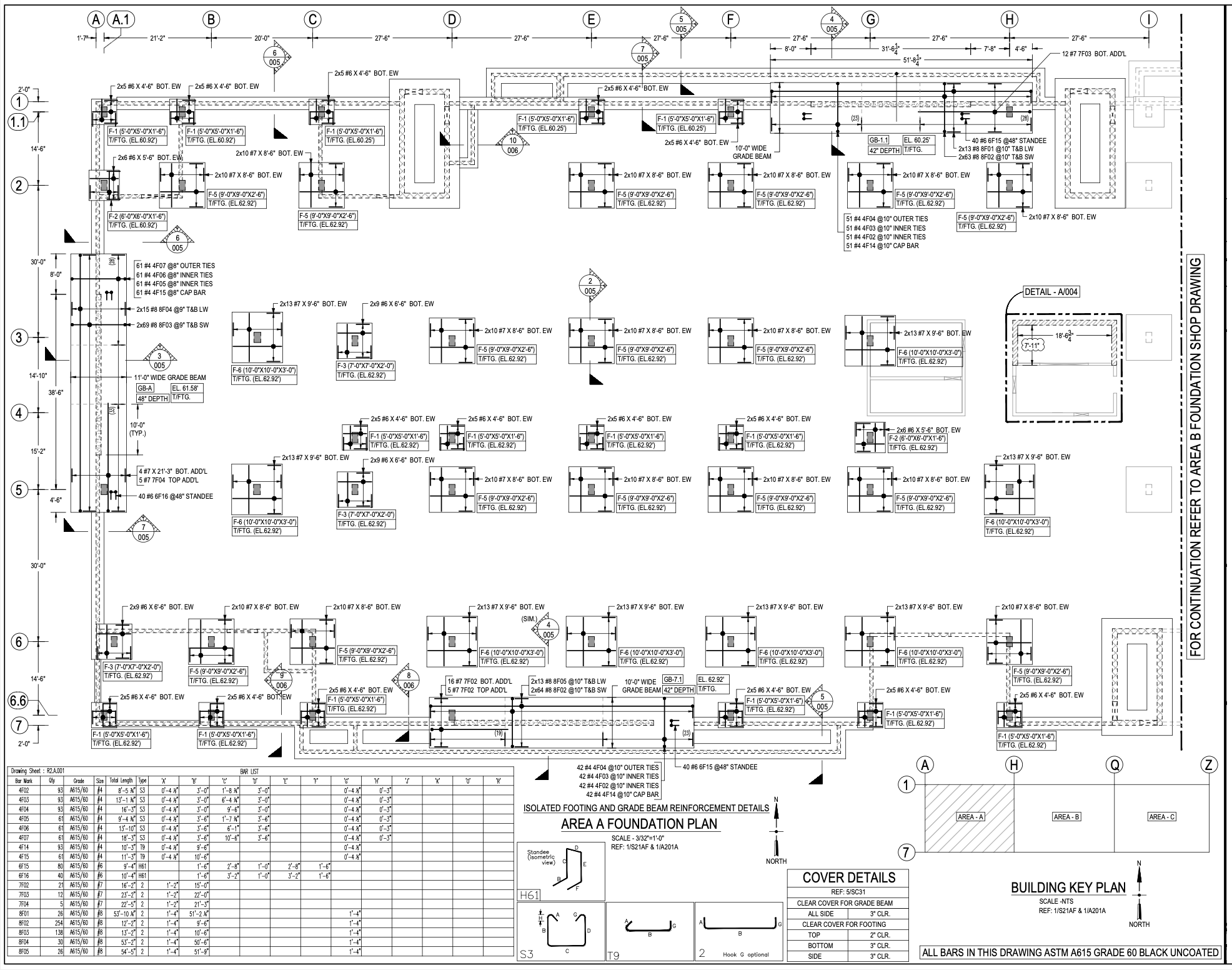

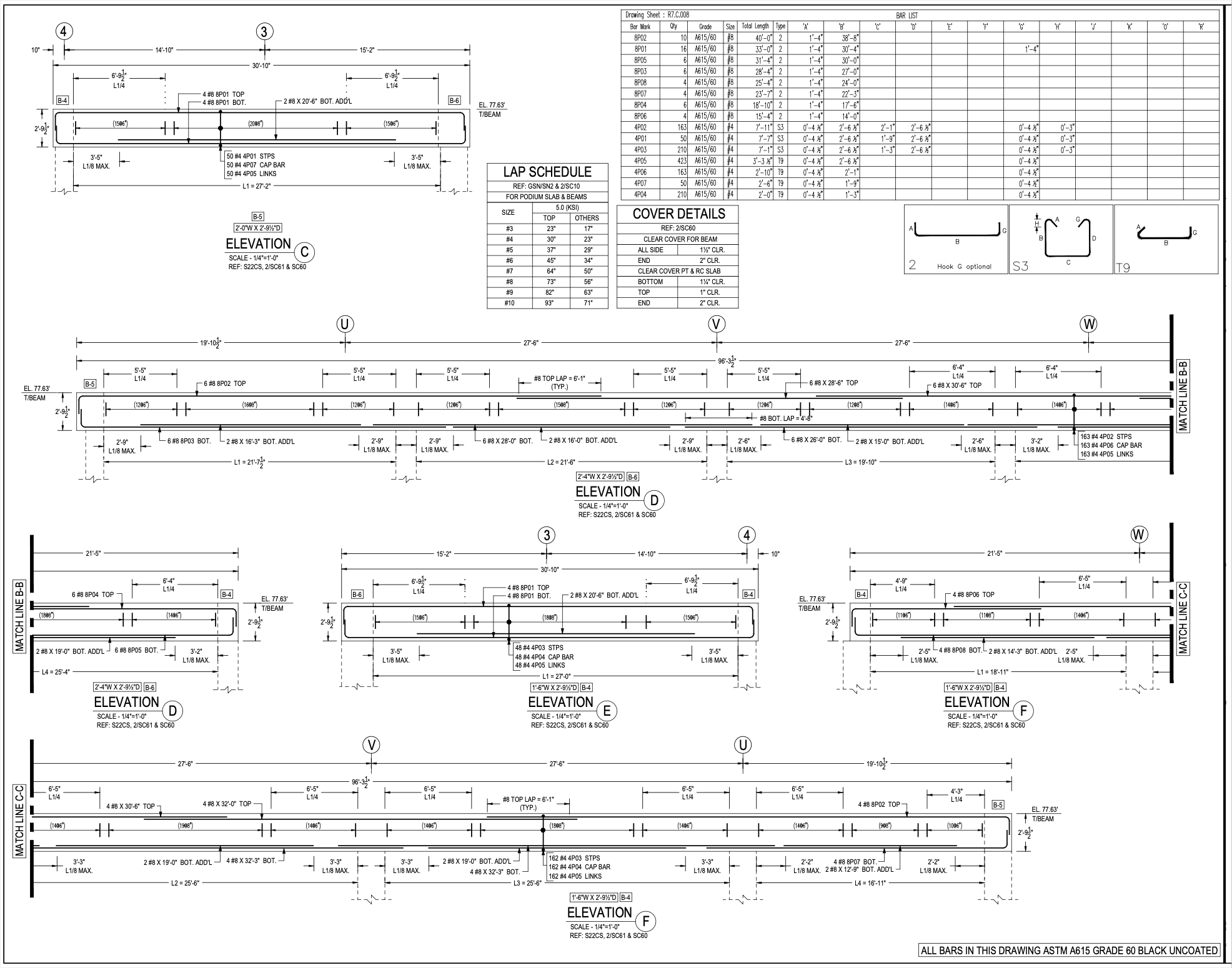

- Preparation of placing/fabrication drawings showing bar sizes, shapes, spacing, cover requirements, lap lengths, hooks, bends, and splice locations.
- Development of Bar Bending Schedules (BBS) with complete data on dimensions, bar marks, weights, and quantities.
- Providing 3D rebar models when required, to visualize congestion, bar placement, and site execution feasibility.
- Deliverables aligned with project-specific standards and international codes, ensuring compliance with CRSI (Concrete Reinforcing Steel Institute) guidelines, ACI standards, and local building codes.
Value to Customers:
- Reduces risk of rework, delays, and site disputes by delivering highly accurate shop drawings.
- Enhances safety and durability of structures through properly detailed reinforcement layouts.
We provide rebar detailing and estimation services across a wide range of structures, including:
- Commercial & Industrial Structures: Parking garages, shopping malls, multi-story buildings, etc.
- Precast Structures: Tilt-up panels and girders.

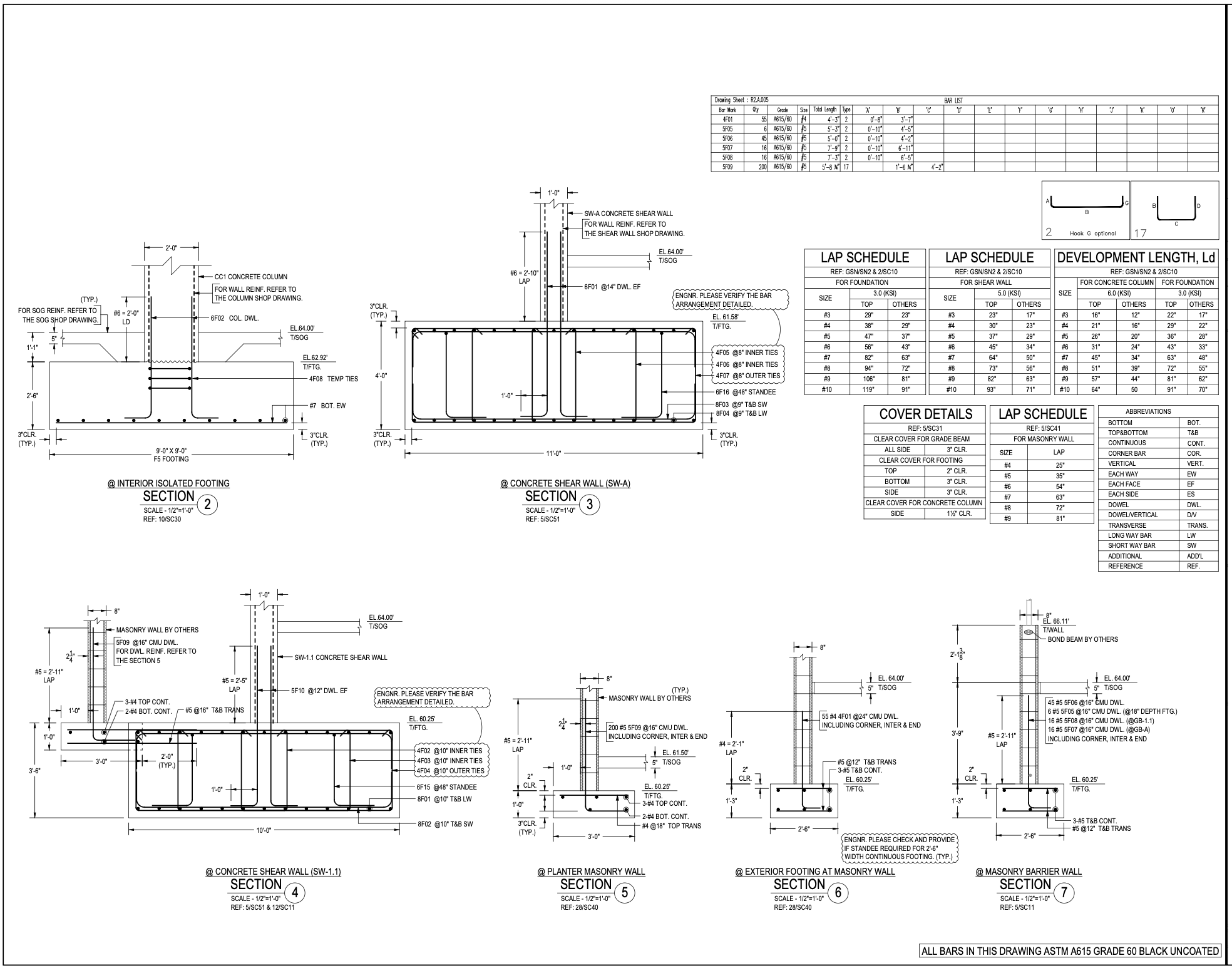

- Masonry Construction.
- Water Treatment Plants.

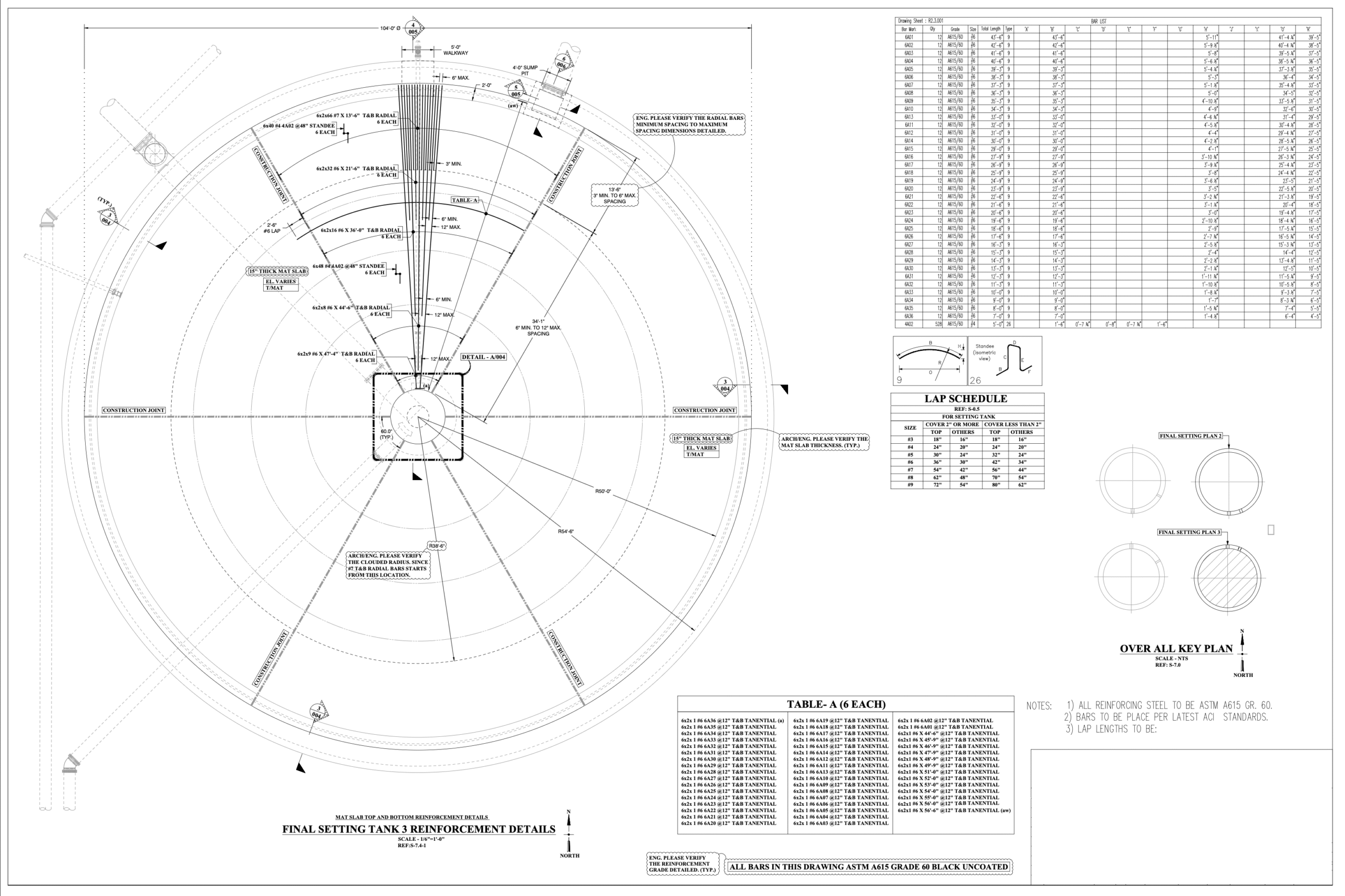

- Special Structures: Tanks, bridges, retaining walls, dams, and other complex structures.
With ZED REBARS, Customers receive not just rebar detailing, but precision-driven, code-compliant engineering solutions that optimize time and cost on every project.
